Must Have Sitex SP120C-RF-7 - SP-120C Mechanical Autopilot Kit
Home / Sitex / Must Have Sitex SP120C-RF-7 – SP-120C Mechanical Autopilot Kit

Must Have Sitex SP120C-RF-7 – SP-120C Mechanical Autopilot Kit

Original price was: $3,550.92.Current price is: $1,420.37.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0041370 Category:
Share

SP-120C Mechanical Autopilot Kit (SP120C-RF-7) by SI-TEX®. Includes Computer, Compass, Control Unit, Feedback, Drive. This product is made of high-quality materials to serve you for years to come. Designed using state-of-the-art technology and with customers in mind. It will meet your needs and deliver great quality at an affordable cost.

Specifications:

Waterproof: IPX6
Control Head Dimensions: 110 mm L x 110 mm W
Voltage supply VOLTAGE: 12/24 Volts DC
New LCD Color LCD Display
Constant Compass Heading Indicator and Rudder Angle Indicator
Current consumption: 0.5 amps at 12VDC in standby mode
Maximum Drive Output Current 15 Amps
Operating temperature: -10C to +55C
Data Connections: NMEA-0183 GPS Input, NMEA-0183 10kHz Compass heading Output
Course Detection <1 Degree

Features:

  • The SI-TEX SP-120C is a new Autopilot designed forhydraulic steering, mechanical steering, & solenoid control
  • Does not require a separate junction box, everything simply connects to the rear of the control head
  • Ideal for small vessels under 38Ft
  • The SP-120C can operate in either Virtual Rudder feedback mode in the case of Outboards or a separate Rudder Feedback unit can be added for inboard vessels
  • SP-120C displays actual Compass heading & Selected Heading, along with Rudder Angle Displays simultaneously
  • Compact 4.1” x 4.1” Splash proof Control head with large easy to read Color LCD Display
  • Extremely easy to select your desired headings, operate, and setup, with new user-friendly software
  • High Precision 9 Axis Gyro Compass allows the SP-120C to adjust quickly to varying sea conditions
  • Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to enhance performance
  • NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
  • NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay

Includes:

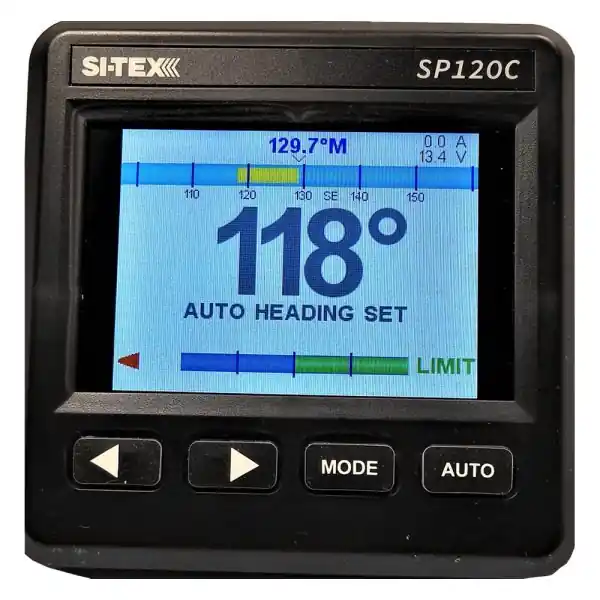

  • SI-TEX SP-120C Color LCD Autopilot Control Head
  • Rudder Feedback
  • Remote Drive
  • NMEA Interface Cables
  • 9 Axis Electronic Gyro Compass
  • Control Head Sun cover
  • Product manual
  • Mounting Screws

Whether it’s for a hard-working commercial boat, sportfishing yacht, inshore skiff, power cruiser or sailing vessel, SI-TEX® offers a variety of proven products for the job. SI-TEX offers a full line of electronics to meet the demands of today’s boater – including professional-grade radar systems, high-performance echosounders, MFD chartplotter/sounder/radars, precision GPS navigation systems, heading sensors, autopilots, VHF communications and more.

Brand:SI-TEXPart Number:SP120C-RF-7Alternate MPN:SP120CRF7
