Name: Free Returns Humminbird Helix5 Di 5"" Wvga Color Fishfinder G2
Brand: Humminbird
SKU: SK0064247
Price: 116.80 USD
Availability: InStock

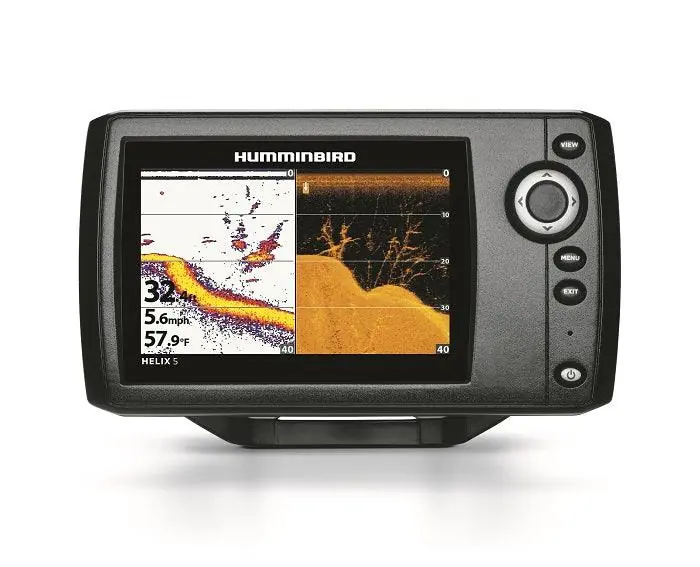

Humminbird HELIX 5 DI G2 Fishfinder

Model: 410200-1
UPC: 082324049019

Down Imaging Sonar — Get a fish-eye’s view of what’s happening below your boat. Incredible images are created with High-frequency sound waves.
SwitchFire Sonar — Take command of how your sonar returns appear with our Clear and Max Modes.
Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
Up-gradable Software — Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.

The HELIX 5 DI G2 with their new user interface and operating system, features a brilliant 800H x 480V, 5″” 256 color display with backlight.Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 DI fishfinder system.

Specifications

Display size	5 in
Display resolution	800 x 480
Display type	Color TFT
Display colors grayscale	16-bit
Standard sonar	Down Imaging/DualBeam PLUS
Standard sonar coverage	16°, 28°, 45° & 75° @ -10db
Standard sonar frequency	455/800/200/455 kHz
target separation	2.5 in
Power output RMS	500 watts
power output peak to Peak	4000 watts
Depth capability	350 ft (DI) & 600 ft (2D)
Temperature	Built-in transducer
Speed	Optional
Backlight	LED
PC Connect	Optional
Switchfire sonar	Yes
Split screenzoom	Yes
Split Screen Bottom Lock:	Yes
Large digit view	Yes
Card reader	No
Input Voltage	10.8-20 VDC
Input Draw	650mA
Dimensions	Gimbal Mount:7.55″”W x 4.64″”H x 3.3″”D Indash Mount:7.55″”W x 4.28″”D x 1.13″”D
