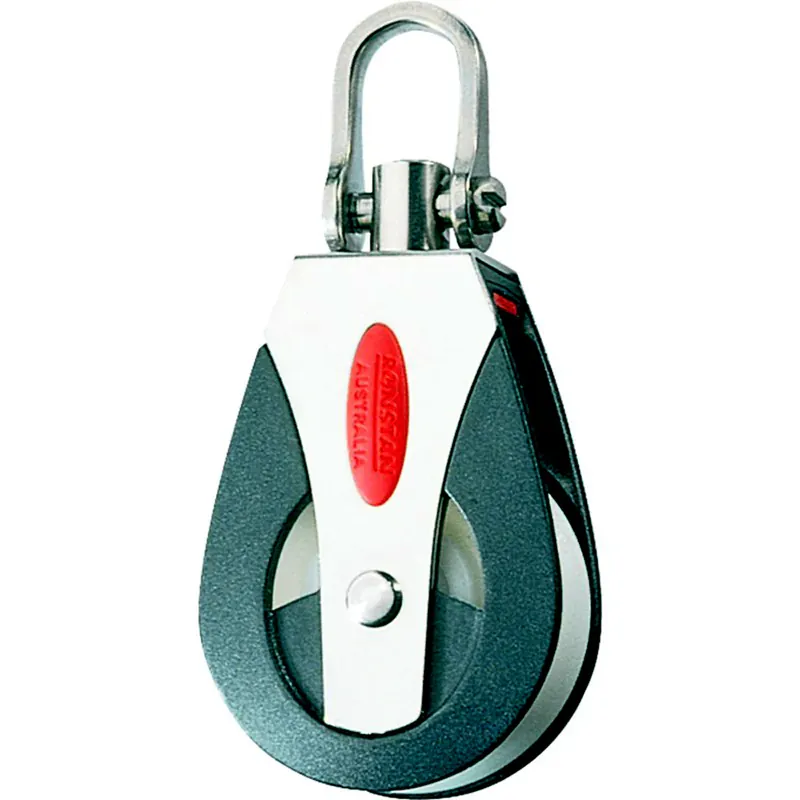

Affordable Ronstan Series 40 All Purpose Block – Single – Universal Head

Series 40 All Purpose Block – Single – Universal Head

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.

Features:

• Exceptionally high working loads
• Low maintenance, long service life
• Self-lubricating sheave
• Captive Lock™ universal head
• Slotted pin shackle eliminates fouled lines

Applications:

• Mainsheet
• Halyard
• Vang
• Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26′)

Materials:

• U.V. stabilized Acetal sheaves
• Impact and U.V. resistant, fiber reinforced Nylon cheeks
• Grade 316 stainless steel bearing race
• Grade 316 stainless steel load strap and head fitting

Specifications:
Sheave Ø:40mm(1-9/16″)
Max. Rope Ø:10mm(7/16″)
Pin Ø: 5mm(3/16″)
M.W.L.:400kg(880lbs)
B. L.:1,000kg(2,200lbs)
Weight:71g(2.5oz)
Manufacturer : Ronstan
Manufacturer Part No: RF41100
UPC : 9316800242870
